2006-2013 BMW 3-SERIES E90 WOOD TRIM NON-M CCC

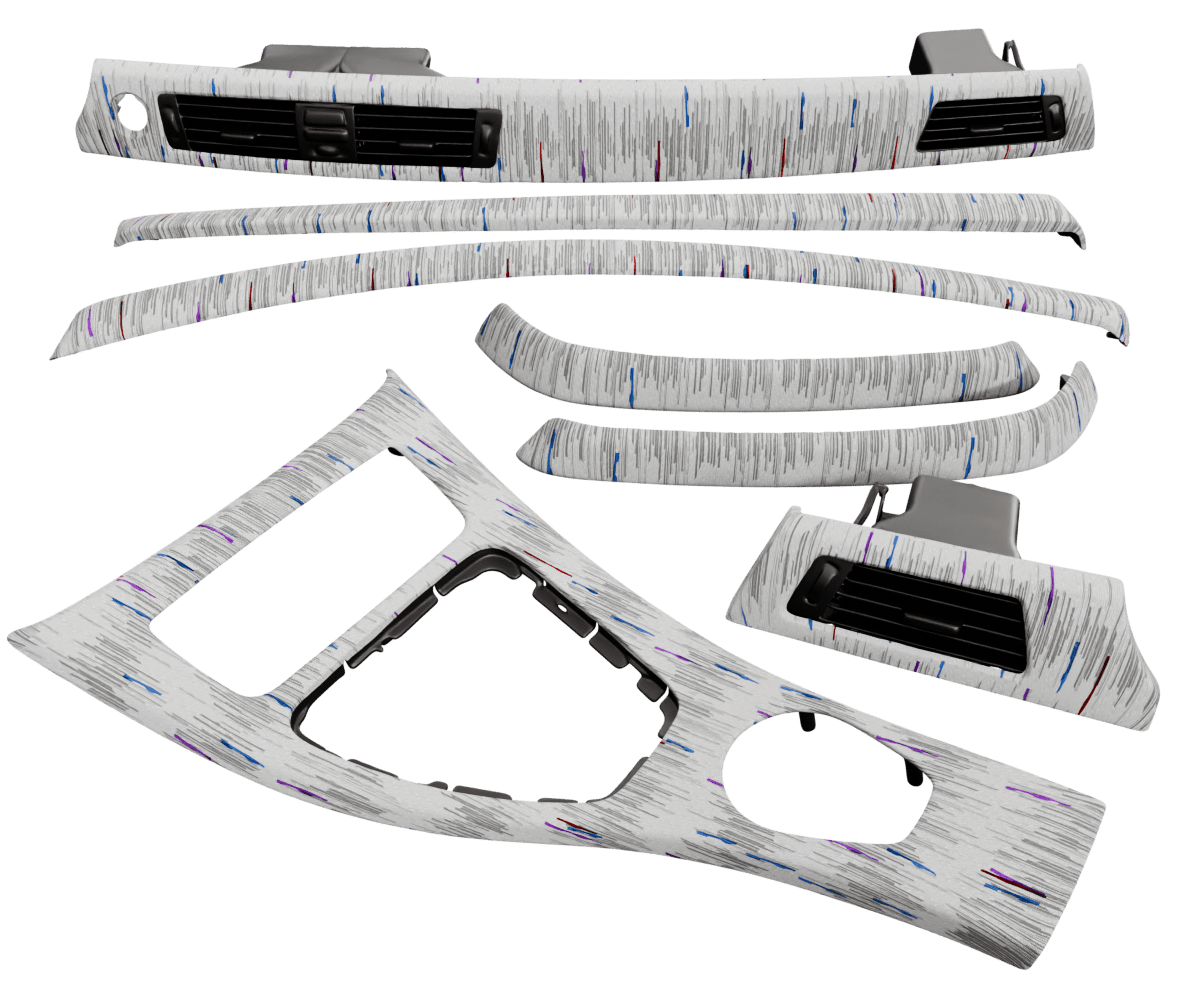

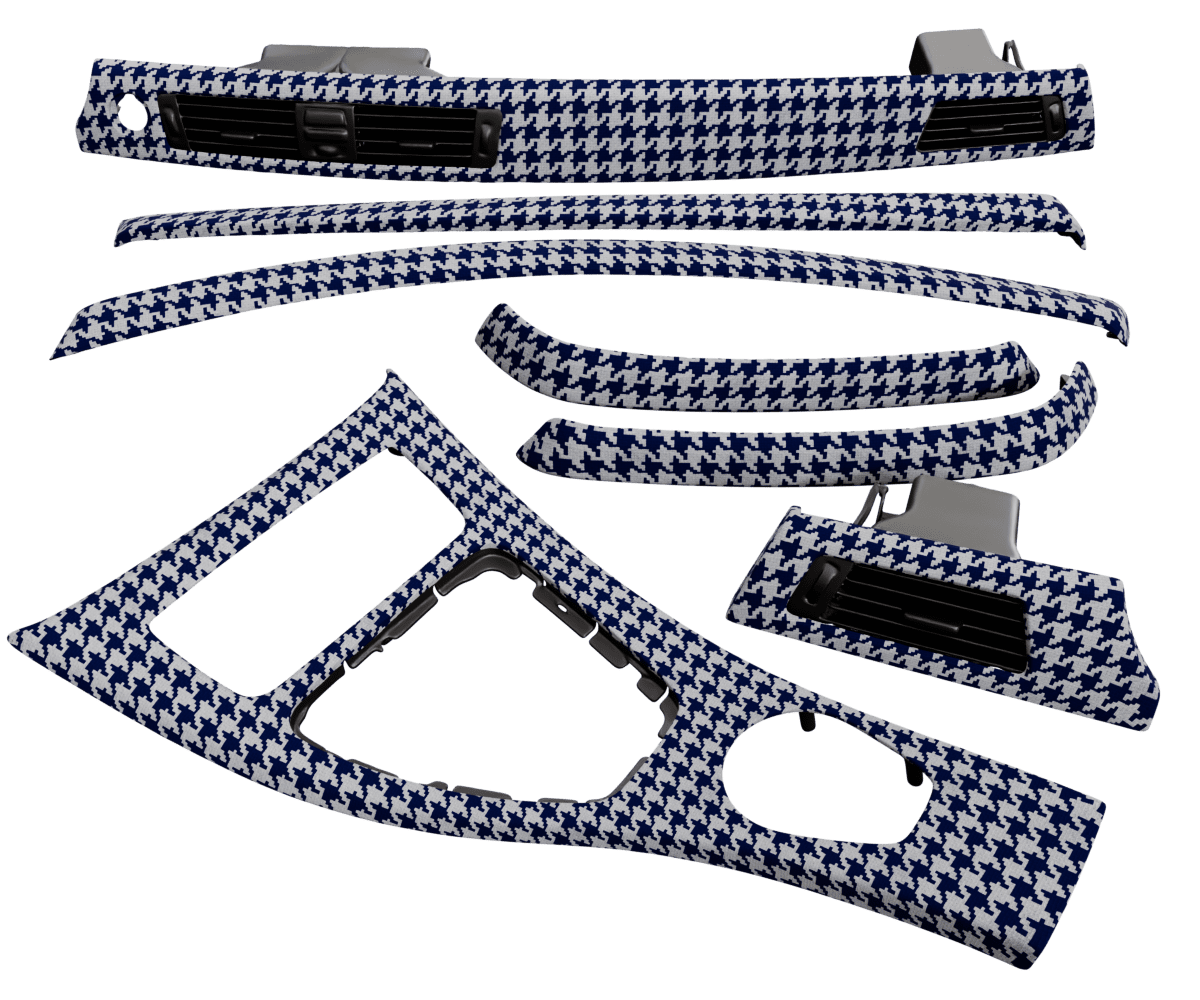

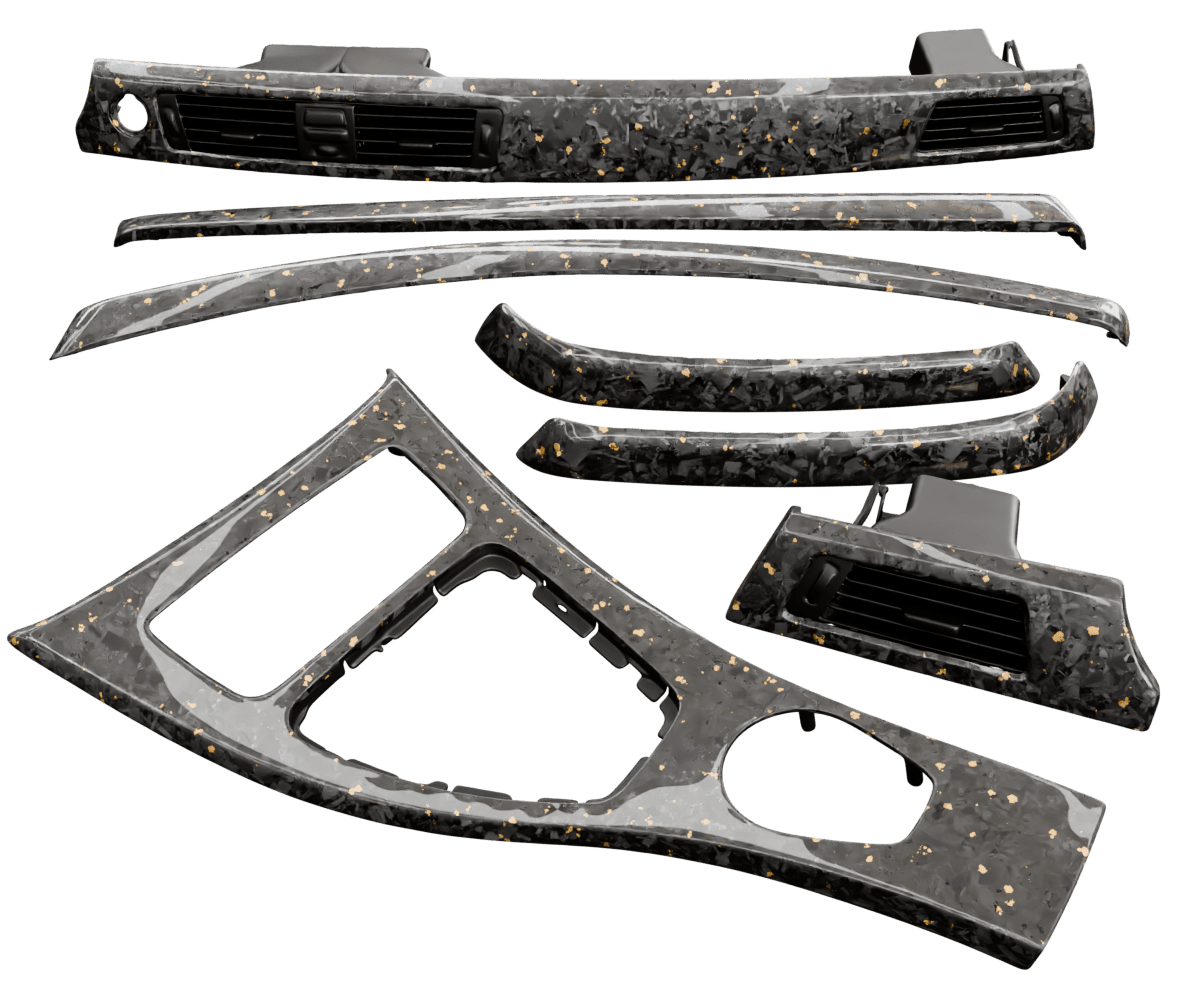

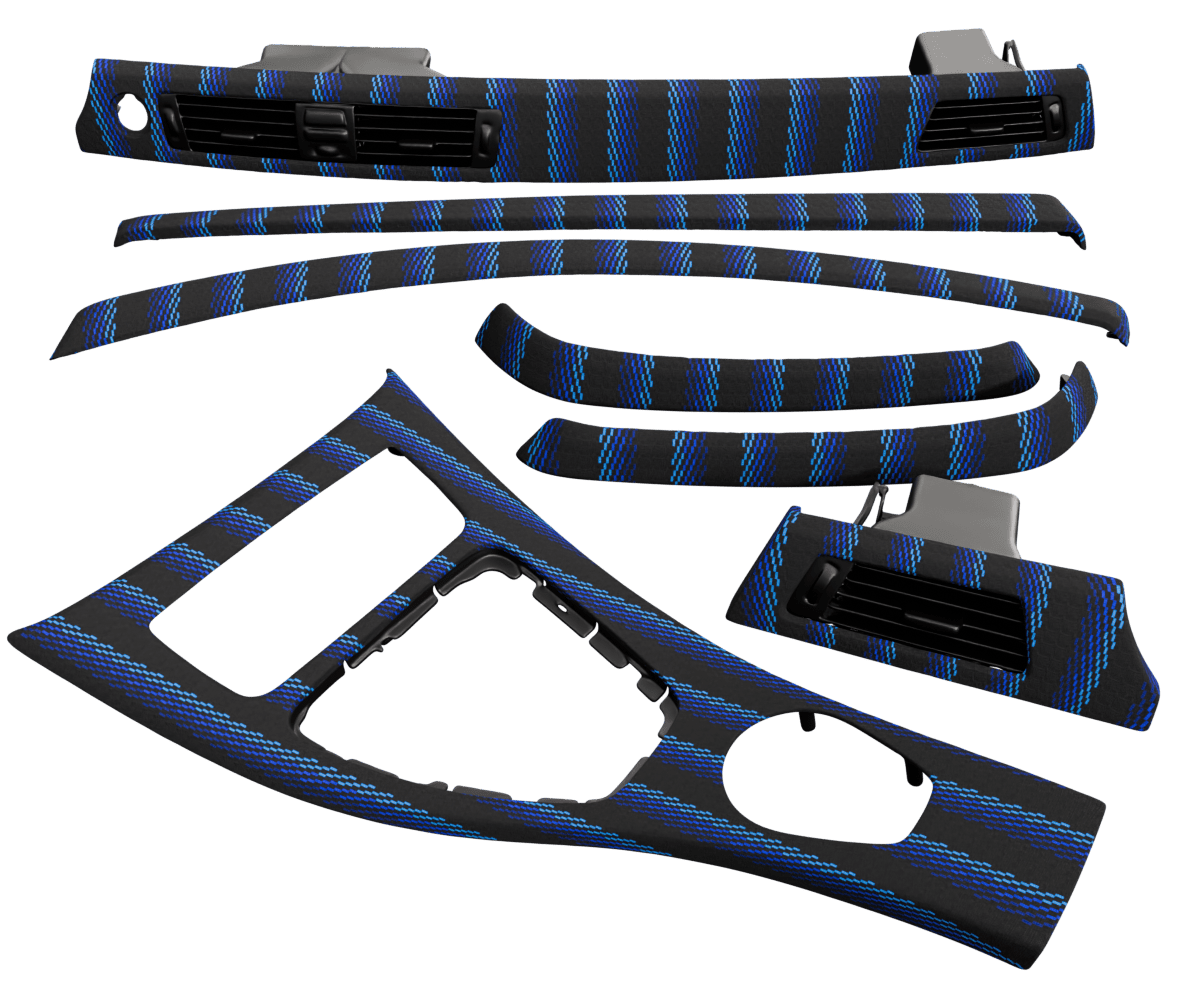

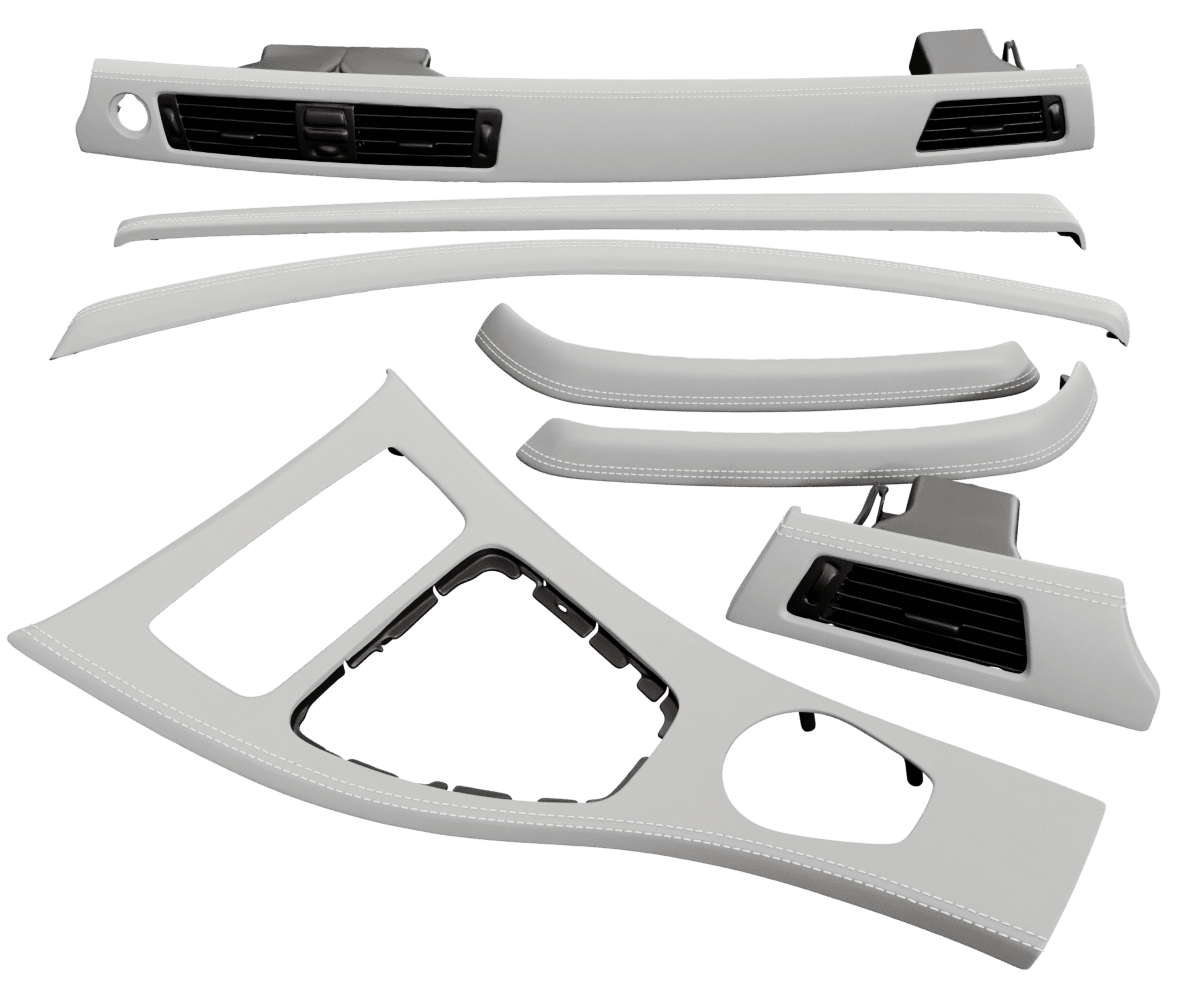

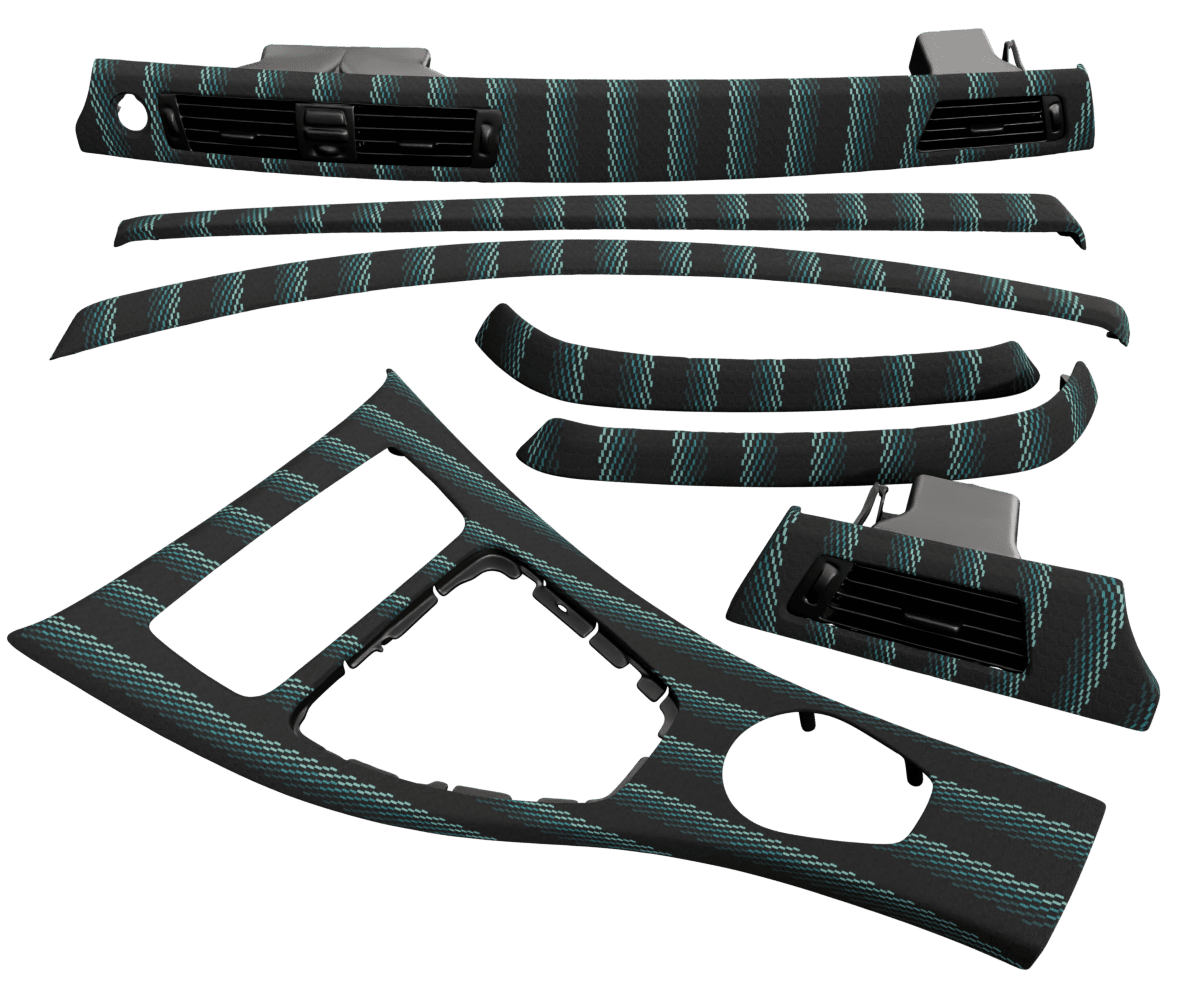

BMW 3-Series E90 Alcantara Wood Trim Set (Dash L/R, Door Trim Front L/R, Door Trim Rear L/R, Center Console)

OEM-direct replacement trim set for the BMW E90 sedan. Each piece is custom made-to-order in your choice of Alcantara, Forged Carbon Fiber, Carbon Fiber, or Nappa Leather—built on OEM fitment for a clean, rattle-free install.

Compatibility with other chassis'

• E91 Touring (wagon): Many dash and console trims share the same part numbers as E90 (e.g., center console wood trim listed as “E90/E91” on OEM-based listings: 51169170899, 51167137484).
• E92/E93 (coupe/convertible): Some center console wood trims interchange by iDrive generation (CIC vs CCC) and wood species (example Dark Bamboo 51169214775 noted for E90/E92). Always confirm by VIN and iDrive type; coupe/convertible dash strips differ due to vent/shape differences (fitment notes).
• Production splits: Pre-LCI (to 09/2008) Poplar parts use different numbers than LCI Walnut parts; right-side dashboard Walnut 51459171173 supersedes earlier 51457132851/6985540 (catalog page).

Custom Alcantara, Forged Carbon Fiber, Carbon Fiber, Nappa Leather

We remanufacture these trims on OEM cores for true plug-and-play fit. Choose Alcantara for a motorsport look, Nappa Leather for a luxe tactile finish, or Carbon (forged/2x2 twill) for a modern performance vibe. All pieces retain the factory clip geometry and clearances so install is as straightforward as swapping OEM parts.

Installation tools needed

• Plastic trim lever set and panel wedge
• T20 Torx driver (vent and console fasteners)
• Phillips screwdriver (ashtray/console sub-assemblies as applicable)
• Plastic clip pliers or needle-nose pliers (retainers)
• Microfiber towels and masking tape (to protect surrounding surfaces)
• Isopropyl alcohol and lint-free wipes (final clean before install)

OEM+ parts, Direct swap of OEM parts

Every Baesic Builds trim is a direct-swap on OEM cores—no cutting, drilling, or coding. Fitment matches the BMW ETK references above, so your E90 goes back together with factory alignment, clip engagement, and vent operation intact.
